    High Protection IP20 Indoor LED Display Screen Shockproof Anti Collision

    Ask Lasest Price
    Brand Name : CRTOP
    Model Number : P1.25mm
    Certification : CE/FCC/ETL
    Price :
    Payment Terms :
    Supply Ability :
    Delivery Time :
    • Product Details
    • Company Profile

    High Protection IP20 Indoor LED Display Screen Shockproof Anti Collision

    High Protection IP20 Indoor LED Display Screen Shockproof Anti Collision

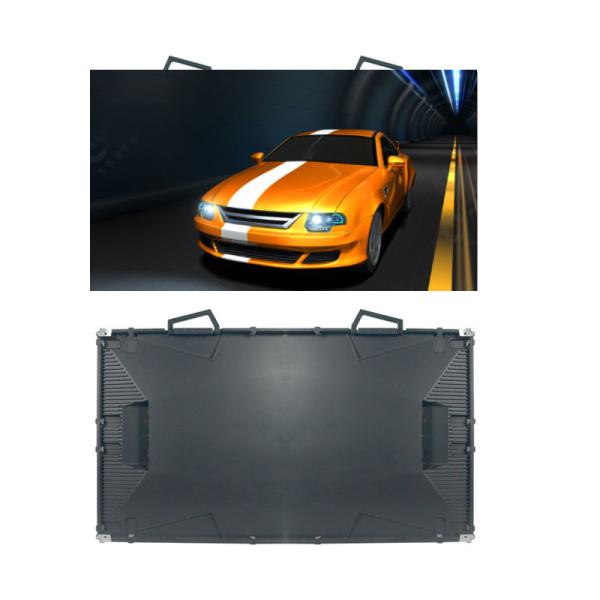

    high protection safe and stable P1.25mm 55 inch display


    1. ultra-high protection, with dustproof, shockproof, anti-collision, front waterproof, moisture-proof, anti-oxidation

    2. Adopt the latest flip-chip COB packaging process, with smaller pitch and higher stability

    3. 55-inch high-precision die-casting aluminum 16:9 cabinet, cabinet accuracy < 0.1 mm, flatness of the entire screen < 0.4 mm


    projectparameterRemark

    BASIC

    PARAMETER

    pixel pitch1.25mm _
    pixel structure1R1G1B
    pixel density640000 /m 2
    Module resolution240 (W)* 135 (H)
    Module size300mm * 168.75mm
    Box size1200*675mm
    Box weight(Kg)19.5kg

    OPTIC

    PARAMETER

    Single point luminance, chromaticity correctionhave
    white balance brightness≥600 cd/㎡
    color temperature20 00K—9300K adjustable
    Horizontal viewing angle≥ 160°
    vertical viewing angle≥ 1 6 0°
    Visible distance≥3 meters
    Brightness uniformity≥97%
    Contrast≥5000:1

    PROCCESSING

    PARAMETER

    Signal processing bits16 bits*3
    grayscale65536
    control distanceNetwork cable: 100 meters, Optical fiber: 10 kilometers
    drive modeHigh gray-scale constant current source driver IC
    frame rate≥ 60HZ
    refresh rate≥ 384 0 Hz
    way to controlSynchronize
    Brightness adjustment range0 to 100 stepless adjustment

    Operation

    parameter

    Continuous working time≥72 hours
    Typical life100,000 hours
    Protection classIP20
    range of working temperature-20℃ to 50℃
    Operating humidity range10 %- 80% RH non-condensing
    Storage temperature range-20 ℃ to 60 ℃

    Electric

    parameter

    Operating VoltageDC: 4.2-5V
    Power RequirementsAC: 220×(1±10%)V, 50×(1±5%)Hz
    Maximum power consumption680W / ㎡ _
    Average power consumption270W / ㎡ _
