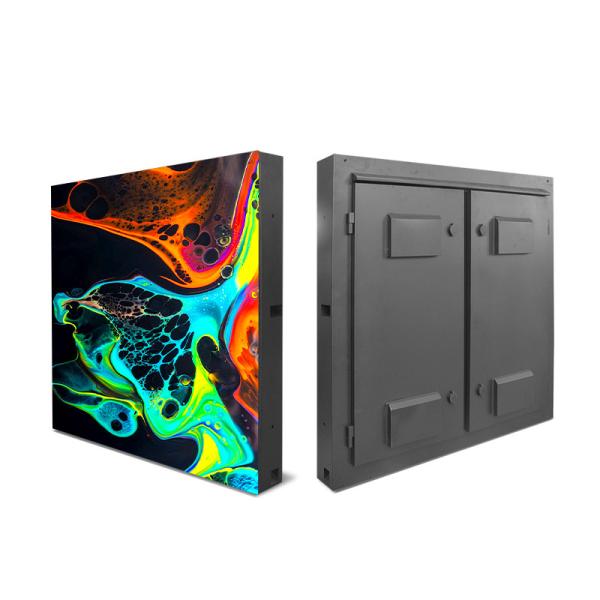

Refresh Rate 1920HZ Outdoor Full Color LED Display Explosion Proof
Insulation explosion-proof P4mm Outdoor advertising display
1. Support 4.2V~5V and 2.8V/3.8V power supply mode, the power
supply selection is more flexible, and there is no risk of burning
the module with mixed power supply
2. Diversely used in commercial real estate, shopping malls, large
squares, outdoor advertising screens, traffic screens and other
field
3, Standard 1920Hz refresh rate, the video picture is more delicate
and smooth; 9000:1 high contrast ratio, improve the contrast
between light and dark, enhance the picture details, restore the
true color
4, Diversely used in commercial real estate, shopping malls, large
squares, outdoor advertising screens, traffic screens and other
fields
Module resolution :80 (W)* 40 (H)
Horizontal viewing angle: ≥120°
vertical viewing angle: ≥120°
Visible distance :≥32 meters
Brightness uniformity :≥97%
Contrast :≥3000:1
grayscale :16Bit
frame rate: ≥60HZ
Protection class: Front IP65, back IP43
Pitch:P2.5, P3, P3.07, P3.91, P4, P5, P5.33, P6.66, P8, P10
Module size:192x192mm,160x160mm,320x160mm,250x250mm,256x128mm
Cabinet size:640x640mm,768x768mm,960*960mm,500x500mm,1024x768mm
1024x768mm,
| project | Parameter | Remark |
Basic parameters | pixel pitch | 4 mm | |
| pixel structure | 1R1G1B | |
| pixel density | 62500/m 2 | |
| Module resolution | 80 (W)* 40 (H) | |
| Module size | 320mm*160mm | |
| Box size | 960mm*960mm | |
Optical parameters | Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥6000cd/㎡ | |
| color temperature | 3200K—9300K adjustable | |
| Horizontal viewing angle | ≥120° | |
| vertical viewing angle | ≥120° | |
| Visible distance | ≥32 meters | |
| Brightness uniformity | ≥97% | |
| Contrast | ≥3000:1 | |
Processing performance | Signal processing bits | 16 bits*3 | |
| grayscale | 16Bit | |
| control distance | Gigabit Ethernet cable: 100 meters, Fiber: 10 kilometers | |
| drive mode | High gray-scale constant current source driver IC | |
| frame rate | ≥60HZ | |
| refresh rate | ≥1920HZ | |
| way to control | Synchronize | |
| Brightness adjustment range | 0 to 100 infinitely adjustable | |
Use parameters | Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | |
| Protection class | Front IP65, back IP43 | |
| range of working temperature | -20℃ to 50℃ | |
| Operating humidity range | 10 %- 80% RH non-condensing | |
| Storage temperature range | -20 ℃ to 60 ℃ | |
| Electrical parameters | Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%) V, 50×(1±5%) Hz | |
| Maximum power consumption | 600W/㎡ | |
| Average power consumption | 230W/㎡ | |
Our Services
1. 27 Years professional led display manufacturer,
2. Shot delivery time: 5-15days.
3. Factory price.
4. OEM and ODM service
5. We can design special product for you.
6. 30% deposit for producing,70% balance to be paid before
shipment.
7. EXW, FOB, CIF C&F, FCA, DDU, colorful trade term.
1. After-sales service:
1) Service principles: response in time, solve problems as soon as
possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen
body, free of all maintenance charges; After Maintenance period,
only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be
solved, please contact with our company, we can response in 24
hours. In order to shorten the maintenance time, Our Company will
deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible
for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site
installation and debugging in strict accordance with the
requirements of the schemes and the original manual. If there is
any special requirement, it is necessary to make changes of part
installation scheme, we will coordinate with users. Our company can
ensure the consistence of completion time and contracted time. Any
problems caused by natural factors or man-made, we will discuss
with client to find solutions.
2) Our company can train the users based on the manual. The
training include system use, system maintenance and equipment
protection
FAQ
| Q: What is the brightness, viewing angle and wavelength of the LED? |
A: Luminous Intensity is equal to the amount of luminous flux
emitted into a very small solid angle at a defined angular
orientation from the light source. The measurement for luminous
intensity is the candela. Symbol is Iv. Viewing Angle is the total cone angle in degrees encompassing the
central, high luminous intensity portion of the LED beam from the
on-axis peak to the off-axis point where the LED intensity is 50%
of the on-axis intensity. This off-axis point is known as theta
one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle;
however, light is visible beyond the1/2 point. Wavelength is the distance between two points of corresponding
phase and is equal to waveform velocity divided by frequency. It
defines what color human eyes could recognize |
| Q: What is dominant wavelength? Please specify the ranges of
wavelength in red, green and blue color respectively. |
| A: Dominant wavelength is defined as the best range of wavelength
showing the most natural color recognized by human eyes. Researches
indicate that fixed colors with wavelength of 620-630nm (red),
520-530nm (green) and 460-470nm (blue), in fact mixed in a
particular proportion, can get the pure white. That is, in display
field, people use luminous materials with above wavelength to make
"compounded" white more natural.In order to get a good balance
white led display, we specify the led colors with wavelength within
4nm for each color |
| Q: Which chip vendors are you buying from? |
| A: It depends on the Customer's requirement. We can purchase from
Japan, Korea, Europe, USA. We are using chips mainly from Taiwan |
| Q: What is the chip size you're using for outdoor display? How
about indoor display? |
| A: For outdoor display, we're using 12mil chip for red, 14mil for
both green and blue. Regarding indoor display, 9mil for red, 12mil
for green and blue are currently adopted |
| Q: How much will the brightness of LED drop down after 1000hrs? |
| A: Based on the result of aging test, the brightness decay of green
LED is around 5%-8%, while blue is around 10%-14% and red is around
5%-8% |
