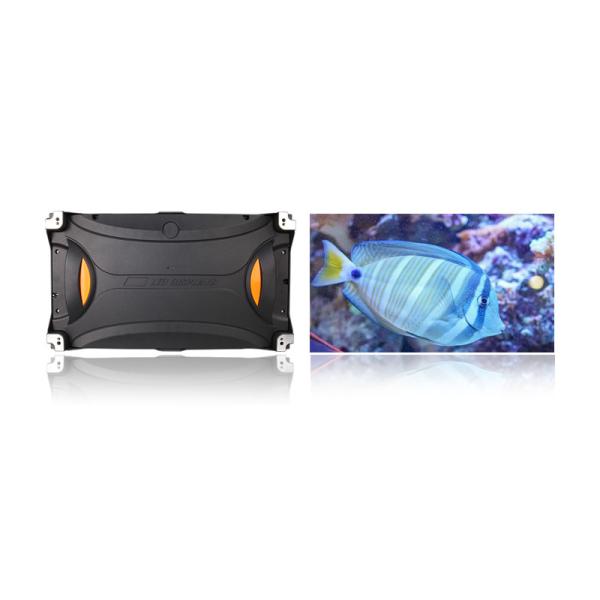

    Fine Pixel Pitch Series 600*337.5mm

    Ask Lasest Price
    Brand Name : CRTOP
    Model Number : P1.44mm
    Certification : CE Rohs FCC EMC ETL RSE
    Price :
    Payment Terms :
    Supply Ability :
    Delivery Time :
    • Product Details
    • Company Profile

    Fine Pixel Pitch Series 600*337.5mm

    Product features:

    • Die-casting aluminum cabinet design, allowing any splicing with high precision,unique heat dissipation design, to ensure the safe and stable operation
    • Full black lamps, high contrast ratio, more vivid picture, richer colours, High consistency, no dead angle and no colour deviation.
    • Allow single point of brightness, chroma correction, to solve the problem of bright colour inconsistency.
    • Supports full front maintenance, more convenient installation and maintenance.
    • Supports various installation methods such as wall mounted, stacking installation.Redundant power supply design, dual signal input and output, automatically detecting the failure and switch, ensure the whole system's stability and reliability.
    • Eliminate residual image circuit design, dynamic without ghosting and trailing.

    Parameter:

    ItemParameter
    BasicParameter
    Pixel Pitch0.9375mm1.25mm1.44mm1.5625mm1.875mm
    Pixel Structure1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B
    Pixel Density1137777/m2640000/m24822253/m2409600/m2284444/m2
    Module Resolution320X180320X180240X135192X108160X90
    Module Size(WXH)300X168.75mm300X168.75mm300X168.75mm300X168.75mm300X168.75mm
    OpticalParameter

    Single Point Brightness,

    Chroma Correction

    supportsupportsupportsupportsupport
    White Balance Brightness600cd/㎡600cd/㎡600cd/㎡600cd/㎡600cd/㎡
    Color Temperature2000—12500K2000—12500K2000—12500K2000—12500K2000—12500K
    Horizontal Viewing Angle140Deg.140Deg.140Deg.140Deg.140Deg.
    Vertical Viewing Angle120Deg.120Deg.120Deg.120Deg.120Deg.
    Visible Distance3 meters3 meters3 meters3 meters3 meters
    Brightness Uniformity≥97%≥97%≥97%≥97%≥97%
    Contrast Ratio5000:15000:15000:15000:15000:1
    Process Performance
    Signal processing bits16bits*316bits*316bits*316bits*316bits*3
    Gray scale12-16Bit12-16Bit12-16Bit12-16Bit12-16Bit
    Control Distance

    Cable: 100 m,Optical

    Fiber:10km

    Cable: 100 m,Optical

    Fiber:10km

    Cable: 100 m,Optical

    Fiber:10km

    Cable: 100 m,Optical

    Fiber:10km

    Cable: 100 m,Optical

    Fiber:10km

    Drive Modeconstant current source driverconstant current source driverconstant current source driverconstant current source driverconstant current source driver
    Frame Rate≥60HZ≥60HZ≥60HZ≥60HZ≥60HZ
    Refresh Rate1920-3840HZ1920-3840HZ1920-3840HZ1920-3840HZ1920-3840HZ
    Way to ControlSynchronizeSynchronizeSynchronizeSynchronizeSynchronize
    Brightness Adjustment Range0-100Stepless Adjustmen0-100Stepless Adjustmen0-100Stepless Adjustmen0-100Stepless Adjustmen0-100Stepless Adjustmen
    Usage Parameter
    Continuous Operation Time≥72Hours≥72Hours≥72Hours≥72Hours≥72Hours
    Expected LED Lifetime(Max)>50,000 Hours>50,000 Hours>50,000 Hours>50,000 Hours>50,000 Hours
    IP RatingIP20IP20IP20IP20IP20
    Operating Temperature-20 ℃ to 50 ℃-20 ℃ to 50 ℃-20 ℃ to 50 ℃-20 ℃ to 50 ℃-20 ℃ to 50 ℃
    Operating Humidity10 %- 80% RH10 %- 80% RH10 %- 80% RH10 %- 80% RH10 %- 80% RH
    Storage Temperature-20 ℃ to 60 ℃-20 ℃ to 60 ℃-20 ℃ to 60 ℃-20 ℃ to 60 ℃-20 ℃ to 60 ℃
    Electrical Parameter
    Operating VoltageDC3.8+2.8VDC4.2-5VDC4.2-5VDC4.2-5VDC4.2-5V
    Power Requirements

    AC:220*(1±10%)

    V,50*(1±5%)Hz

    AC:220*(1±10%)

    V,50*(1±5%)Hz

    AC:220*(1±10%)

    V,50*(1±5%)Hz

    AC:220*(1±10%)V,50*(1±5%)HzAC:220*(1±10%)V,50*(1±5%)Hz
    Maximum power consumption680W/㎡680W/㎡680W/㎡680W/㎡680W/㎡
    Averagepower consumption260W/㎡260W/㎡260W/㎡260W/㎡260W/㎡
